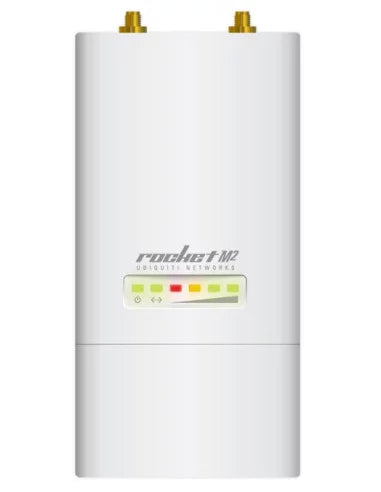

Ubiquiti Rocket M2 (UBNT-RocketM2)

The Ubiquiti Rocket M2 (UBNT-RocketM2) is a powerful, high-performance base station designed for outdoor wireless applications. It is ideal for long-range point-to-point (PtP) or point-to-multi-point (PtMP) networks, offering high throughput and enhanced coverage. The Rocket M2 is commonly used in conjunction with Ubiquiti's AirMax antennas, providing reliable, scalable, and high-speed wireless connections.

Key Features:

• 2.4GHz Frequency: Operates on the 2.4GHz band, providing excellent range and performance for both PtP and PtMP links.
• AirMax Technology: Incorporates Ubiquiti’s proprietary AirMax technology, which enhances network performance by reducing latency and interference, offering superior throughput in challenging environments.
• High Output Power: Capable of transmitting up to 27dBm (500mW) of power, ensuring strong, reliable connections even at longer distances.
• MIMO Support: Supports 2x2 MIMO (Multiple Input Multiple Output) technology for higher data rates and better overall network efficiency.
• Compatibility with AirMax Antennas: Designed to be used with Ubiquiti’s high-performance AirMax antennas, enabling optimal performance for various outdoor wireless setups.
• Weather-Resistant Design: Built for outdoor use with rugged, weather-resistant housing that withstands harsh environmental conditions, ensuring reliable operation in extreme temperatures.
• PoE (Power over Ethernet): Supports PoE for easier installation, requiring only a single cable for both power and data, simplifying setup in remote locations.

Specifications:

• Frequency Band: 2.4GHz (2400–2483 MHz)
• Max Throughput: 150 Mbps
• Antenna Gain: External antenna support (antenna sold separately)
• Transmission Power: 27dBm (500mW)
• MIMO Technology: 2x2 MIMO
• Networking: 1 x 10/100 Ethernet port (PoE)
• Power Supply: 24V PoE (included)
• Dimensions: 280 x 170 x 60 mm
• Weight: 0.8 kg
• Operating Temperature: -30°C to 75°C
• Certifications: CE, FCC, IC

The Ubiquiti Rocket M2 (UBNT-RocketM2) is an ideal solution for those needing high-performance, long-range wireless connectivity in outdoor environments. With its high output power, MIMO support, and compatibility with Ubiquiti’s AirMax antennas, the Rocket M2 provides reliable, scalable wireless networking for a variety of applications, including backhaul and last-mile connectivity.
