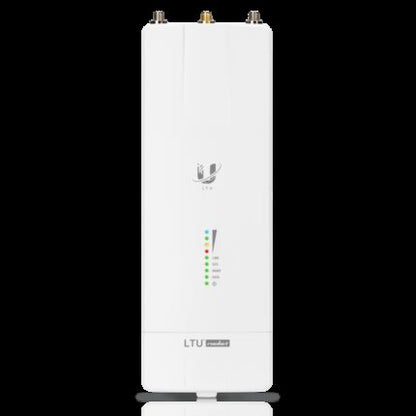

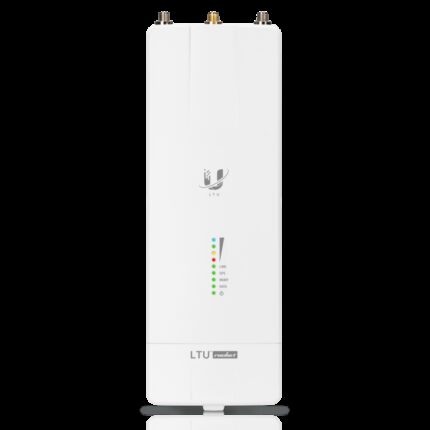

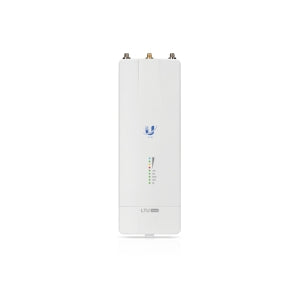

Ubiquiti LTU Rocket (UBNT-NHU-LTU-ROCKET)

The Ubiquiti LTU Rocket (UBNT-NHU-LTU-ROCKET) is a powerful base station solution for point-to-multipoint (PtMP) applications, built on Ubiquiti’s proprietary LTU (Long-Term Ubiquiti) technology. Unlike traditional 802.11-based systems, LTU offers superior performance, scalability, and spectral efficiency, making it ideal for wireless ISPs and enterprise deployments. The LTU Rocket is designed to deliver high-throughput and long-range connectivity.

Key Features:

• Proprietary LTU Technology: Provides unmatched performance and flexibility, free from the limitations of 802.11-based systems.
• Scalable PtMP Deployment: Supports up to 1+ Gbps throughput and can serve multiple client devices with high efficiency.
• Advanced Channel Flexibility: Operates in the 5 GHz band with support for 10/20/30/40/50 MHz channel widths, optimising spectrum use.
• High Capacity and Range: Capable of long-distance communication with robust data transmission for demanding environments.
• Integrated GPS Sync: Minimises interference in dense environments by enabling precise time synchronisation.
• Durable Design: Weatherproof housing ensures reliable operation in outdoor deployments.
• Easy Management: Configured and managed through Ubiquiti's intuitive LTU Configuration Interface.

Specifications:

• Frequency Range: 4800 MHz – 6200 MHz
• Channel Bandwidth: 10/20/30/40/50 MHz
• Maximum Throughput: Over 1 Gbps
• Power Output: Up to 29 dBm
• Networking Interface: 1 x Gigabit Ethernet port
• Antenna Compatibility: Works with Ubiquiti airMAX Sector or horn antennas for customisable beam patterns.
• Power Method: Passive PoE (48V)
• Power Consumption: 19W
• Operating Temperature: -40°C to 60°C
• Dimensions: 174.7 x 93.2 x 39 mm
• Weight: 295 g
• Weatherproofing: IP67-rated housing

The Ubiquiti LTU Rocket (UBNT-NHU-LTU-ROCKET) is the ideal solution for wireless ISPs and enterprises needing a high-performance base station for PtMP networks. With its cutting-edge LTU technology, advanced scalability, and robust outdoor design, the LTU Rocket sets a new standard for reliable wireless communication.
