Ubiquiti LTU Pro (UBNT-LTU-PRO)

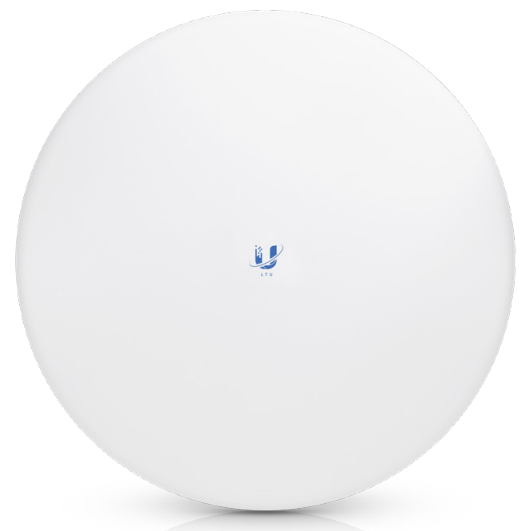

The Ubiquiti LTU Pro (UBNT-LTU-PRO) is a high-performance point-to-point (PtP) outdoor radio designed to offer superior throughput and range, ideal for ISP deployments and long-distance wireless connections. Utilizing Ubiquiti’s proprietary LTU technology, it delivers exceptional speed, low latency, and strong interference resistance, making it a robust solution for connecting remote locations or extending wireless networks.

Key Features:

• Advanced LTU Technology: Leverages Ubiquiti’s proprietary LTU protocol to provide superior performance compared to traditional 802.11-based systems, with better spectral efficiency and longer range.
• High Throughput: Capable of delivering over 1 Gbps throughput, making it suitable for high-demand applications.
• Long-Range Performance: Designed to provide reliable connections over long distances, ideal for rural areas or wide-area networks.
• Optimized for PtP Links: Perfect for creating stable, high-performance wireless links between distant locations.
• Durable Outdoor Design: Built for outdoor environments with IP67-rated weatherproof housing for protection against dust, rain, and extreme temperatures.
• Easy Setup: Quick installation with integrated GPS for synchronisation and advanced settings through Ubiquiti’s LTU interface.
• Flexible Mounting Options: Includes both pole-mounting and wall-mounting options to fit a variety of installation needs.

Specifications:

• Frequency Range: 4900 MHz – 6000 MHz (subject to local regulations)
• Maximum Throughput: 1.5 Gbps
• Power Output: Up to 30 dBm
• Networking Interface: 1 x Gigabit Ethernet port
• Antenna Compatibility: Works with Ubiquiti’s airMAX sector antennas or other compatible high-gain antennas.
• Power Supply: 24V Passive PoE (Power over Ethernet)
• Power Consumption: 18W (Maximum)
• Operating Temperature: -40°C to 70°C
• Dimensions: 300 x 100 x 50 mm
• Weight: 680 g
• Weatherproof Rating: IP67

The Ubiquiti LTU Pro (UBNT-LTU-PRO) is an ideal solution for deploying long-range, high-performance PtP wireless links. Its robust design, advanced LTU technology, and easy setup make it a reliable choice for both urban and rural network expansion. Whether for ISP backbone connections or private network extensions, it offers exceptional throughput and range.
