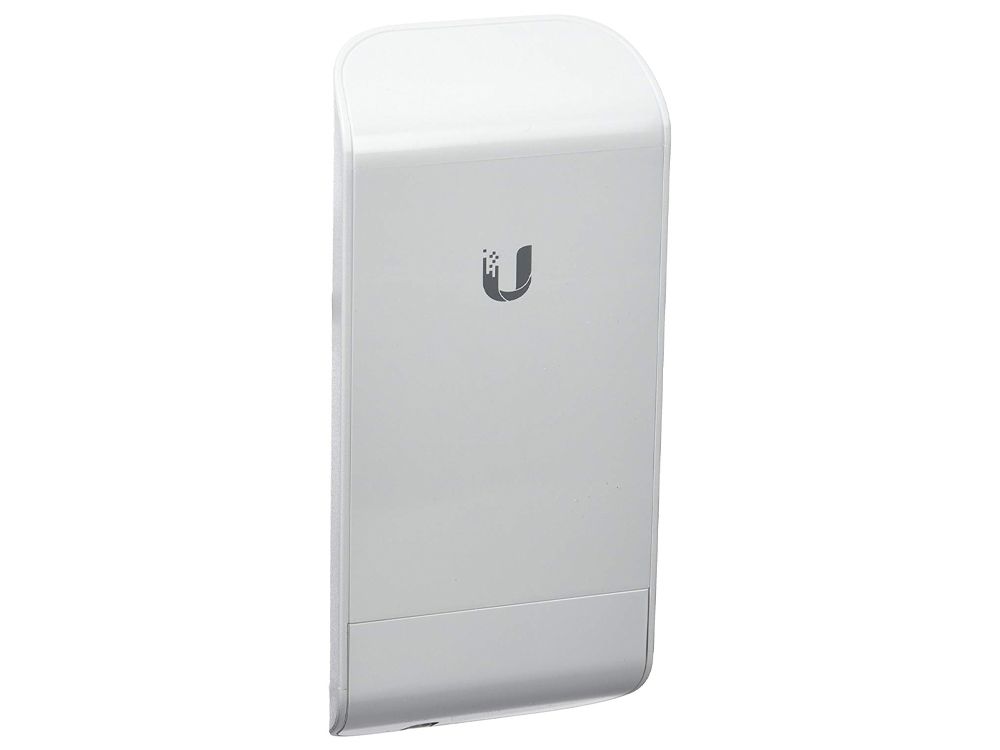

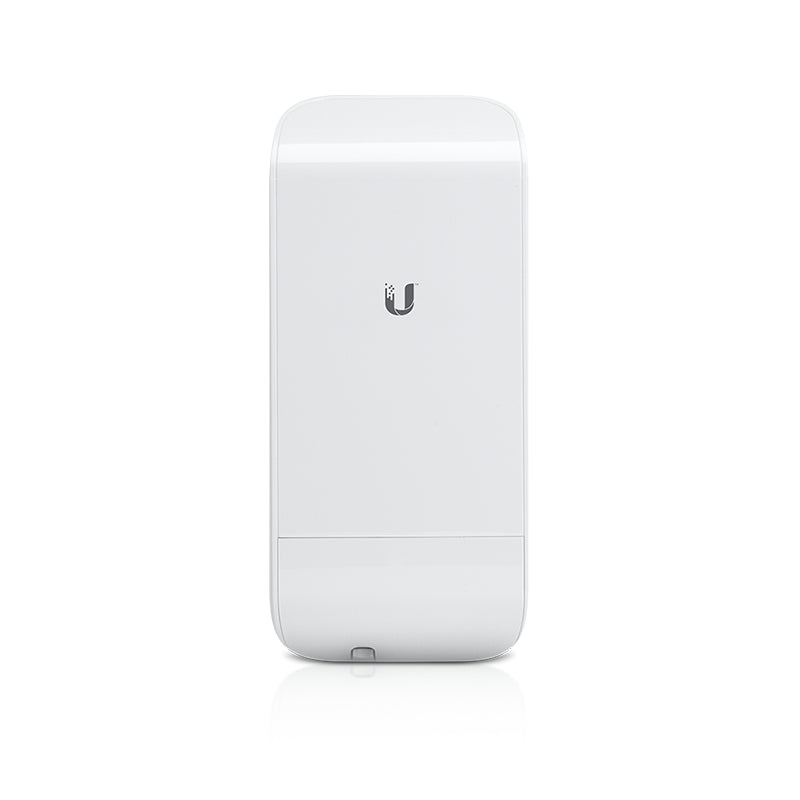

Ubiquiti NanoStation Loco M2 (UBNT-Loco-M2)

The Ubiquiti NanoStation Loco M2 (UBNT-Loco-M2) is a compact and cost-effective wireless access point designed for long-range point-to-point (PtP) and point-to-multi-point (PtMP) links. It operates on the 2.4GHz band, providing reliable wireless connectivity in remote or hard-to-wire locations. Ideal for small to medium-scale outdoor deployments, the Loco M2 offers excellent performance and ease of use.

Key Features:

• 2.4GHz AirMax Technology: Utilizes Ubiquiti’s proprietary AirMax technology to enhance wireless performance in both PtP and PtMP applications. It provides high throughput and reduces interference for a more stable connection.
• Compact and Weatherproof: Designed for outdoor environments, the Loco M2 is housed in a rugged, weather-resistant casing, making it perfect for challenging outdoor installations.
• High Output Power: Features a high transmission power of up to 27dBm (500mW), ensuring stable connections over longer distances, especially in remote areas.
• Dual Polarization Antennas: Equipped with 2 x 2 MIMO (Multiple Input Multiple Output) technology and a 13dBi antenna, providing robust signal strength and coverage for both PtP and PtMP deployments.
• Easy Setup: Integrates seamlessly with Ubiquiti’s AirControl management system, allowing for easy configuration and monitoring through a simple, intuitive interface.
• Efficient Bandwidth Management: Supports advanced QoS (Quality of Service) features for prioritizing traffic, ensuring optimal performance even in congested environments.
• PoE Support: Powered over Ethernet (PoE) for easy installation with a single Ethernet cable that carries both power and data.

Specifications:

• Frequency Band: 2.4GHz (2400–2483 MHz)
• Max Throughput: 150 Mbps
• Antenna Gain: 13dBi, dual-polarization antenna
• Transmission Power: 27dBm (500mW)
• Operating Range: Up to 5+ km (depending on environmental conditions)
• Networking: 1 x 10/100 Ethernet port (PoE)
• Power Supply: 24V PoE (included)
• Dimensions: 190 x 50 x 30 mm
• Weight: 0.3 kg
• Operating Temperature: -40°C to 70°C
• Certifications: CE, FCC, IC

The Ubiquiti NanoStation Loco M2 (UBNT-Loco-M2) is an affordable, reliable, and compact solution for establishing long-range wireless links in outdoor environments. With its high output power, MIMO technology, and rugged design, it’s a great choice for businesses and individuals needing robust wireless connectivity in hard-to-reach locations.
