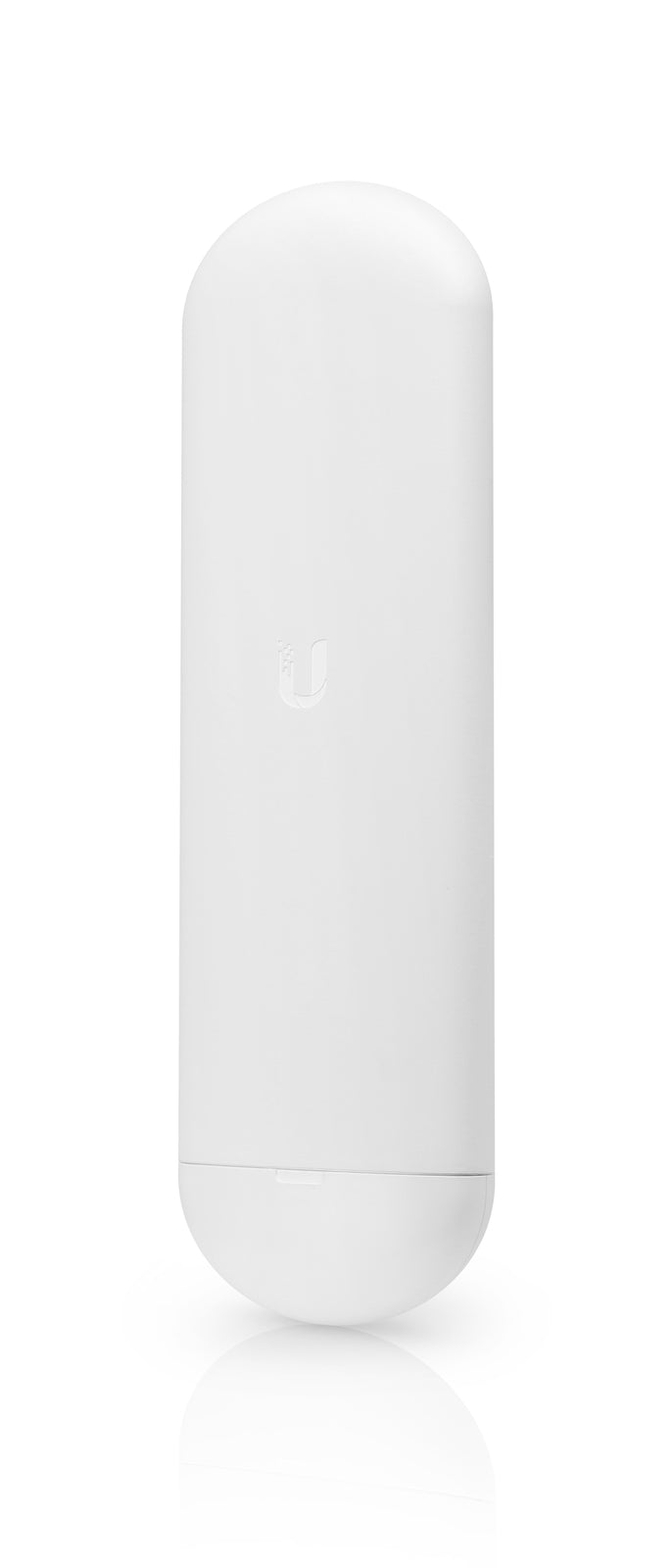

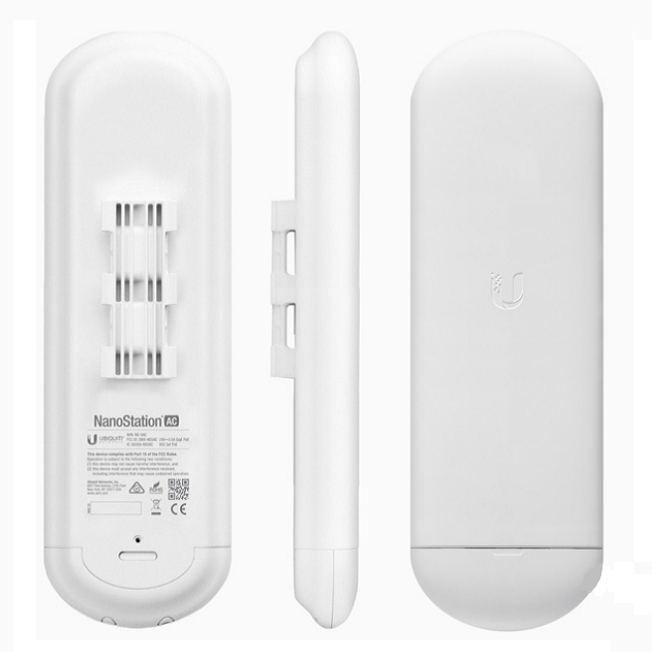

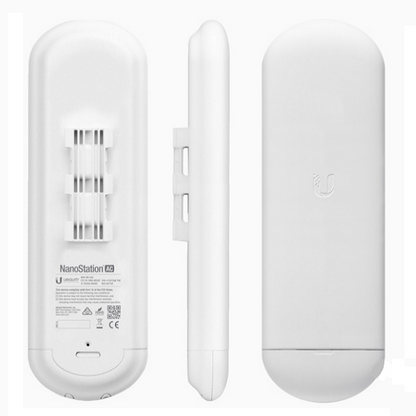

Ubiquiti NanoStation 5AC Loco (UBNT-NS-5AC-Loco)

The Ubiquiti NanoStation 5AC Loco (UBNT-NS-5AC-Loco) is a compact, high-performance airMAX AC-based outdoor CPE (Customer Premises Equipment) designed to provide reliable point-to-point (PtP) or point-to-multipoint (PtMP) wireless connectivity. Featuring 5 GHz band support, the NanoStation 5AC Loco offers exceptional throughput, extended range, and powerful performance in a small form factor, making it an excellent choice for outdoor wireless bridging and backhaul applications.

Key Features:

• 5 GHz Band: Operates in the 5 GHz frequency band, minimising interference and offering high-speed wireless connectivity for long-distance links.
• airMAX AC Technology: Built on Ubiquiti's airMAX AC protocol, which delivers improved performance, efficiency, and scalability compared to previous generations, with higher throughput and reduced latency.
• Up to 450 Mbps Throughput: Capable of achieving up to 450 Mbps of throughput for high-speed data transfer, making it suitable for various demanding applications, including video streaming and large file transfers.
• Compact, Weatherproof Design: Features a small, rugged, and weatherproof design that allows for easy deployment in outdoor environments. Perfect for harsh conditions.
• Integrated Antenna: Comes with a high-performance 13 dBi directional antenna for reliable long-range connections.
• Plug and Play Setup: Simplified installation with an intuitive setup process using the airOS software, which allows for easy configuration and monitoring.
• Power over Ethernet (PoE): Powered by 802.3af/at PoE, simplifying installation and reducing the need for separate power cables.

Specifications:

• Wireless Standards:
  • 5 GHz: 802.11a/n/ac
• Data Rates:
  • 5 GHz: 450 Mbps max throughput
• Antenna:
  • 13 dBi directional antenna, integrated
• Ethernet Port: 1 x Gigabit Ethernet (10/100/1000)
• Power Input: 802.3af/at PoE (Passive PoE)
• Max Power Consumption: 6W
• Dimensions: 160 x 160 x 31 mm
• Weight: 230 g
• Operating Temperature: -40°C to 70°C
• Mounting: Pole-mountable, adjustable
• Certifications: CE, FCC, IC

The Ubiquiti NanoStation 5AC Loco (UBNT-NS-5AC-Loco) is a powerful and compact solution for outdoor wireless networking, delivering reliable, high-speed connectivity over long distances. Its robust design, high-performance airMAX AC technology, and ease of deployment make it an excellent choice for point-to-point or point-to-multipoint installations, ensuring excellent coverage and reliability even in demanding environments.
