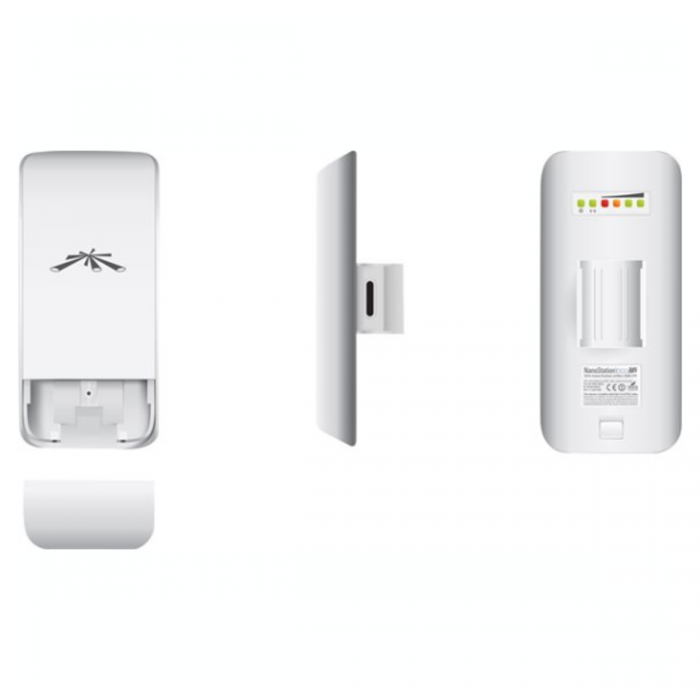

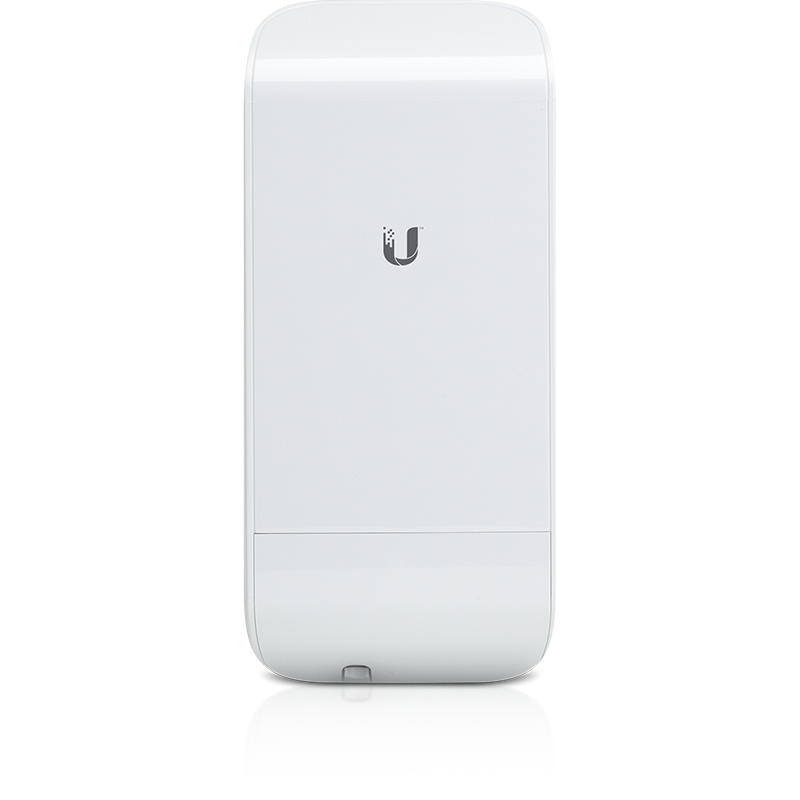

Ubiquiti Loco M5 Access Point

The Ubiquiti NanoStation Loco M5 is a compact and powerful 5 GHz CPE (Customer Premises Equipment) designed for long-range, point-to-point (PtP) or point-to-multipoint (PtMP) wireless networking. It combines sleek design with advanced performance, making it ideal for outdoor connectivity applications such as wireless bridging, video surveillance, or internet distribution.

Key Features:

• High-Speed 5 GHz Connectivity: Operates on the 5 GHz frequency band, reducing interference and providing faster, more reliable connections.
• Compact & Lightweight: Sleek, space-saving design that’s easy to install in a variety of outdoor environments.
• Long-Range Performance: Optimised for long-distance links of up to 10+ km with outstanding signal quality.
• Advanced AirOS Software: Offers intuitive configuration and management with support for features like QoS, VLANs, and real-time RF analytics.
• Integrated Antenna: 13 dBi dual-polarity antenna for excellent throughput and coverage.
• PoE Support: Powered via 24V passive PoE, allowing for convenient and cost-effective installations.

Specifications:

• Frequency: 5 GHz
• Throughput: Up to 150+ Mbps
• Range: Up to 10+ km (depending on environment)
• Antenna:
  • Gain: 13 dBi
  • Polarisation: Dual (H/V)
• Processor: Atheros MIPS 24KC, 400 MHz
• Memory: 32 MB SDRAM, 8 MB Flash
• Ethernet Ports: (1) 10/100 Ethernet port
• Power Options: 24V passive PoE (Power supply included)
• Operating Temperature: -30°C to 75°C
• Dimensions: 163 x 31 x 80 mm
• Weight: 180 g

The NanoStation Loco M5 is perfect for applications requiring a compact, cost-effective, and reliable wireless solution. Whether you're setting up a wireless bridge, extending your network, or building a scalable PtMP system, the NanoStation Loco M5 provides the performance and dependability you need.
