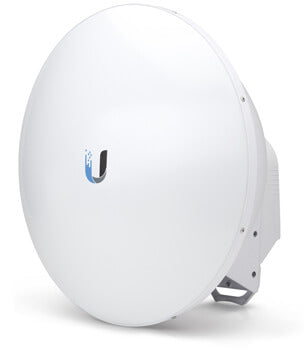

Ubiquiti AirFiber AF-5G23-S45

The Ubiquiti airFiber X Antenna AF-5G23-S45 is a high-performance antenna specifically designed for use with Ubiquiti’s airFiber radios. Engineered to deliver exceptional gain and noise rejection, it is ideal for point-to-point (PtP) wireless backhaul links in the 5 GHz band. The antenna features a compact, lightweight design with advanced RF isolation, ensuring superior performance in high-density environments.

Key Features:

• High-Gain Antenna: Offers 23 dBi gain for extended range and robust link performance.
• Optimised for airFiber Radios: Seamlessly integrates with Ubiquiti’s airFiber 5X and other compatible radios for reliable PtP connections.
• 45° Slant Polarisation: Enhances signal clarity and reduces interference in dense RF environments.
• Durable Construction: Built with a rugged, weatherproof design for outdoor deployments in challenging conditions.
• Simple Installation: Quick and easy mounting with a flexible bracket system, designed for precise alignment.
• Advanced RF Isolation: Minimises noise and interference for improved signal quality and overall link reliability.

Specifications:

• Frequency Range: 5.1 – 5.9 GHz
• Gain: 23 dBi
• Polarisation: Dual-linear, 45° slant
• Beamwidth:
  • Azimuth: 10°
  • Elevation: 10°
• Front-to-Back Ratio: >30 dB
• VSWR: ≤ 1.5:1
• Input Power: 50W maximum
• Impedance: 50 Ω
• Connector Type: (2) RP-SMA (for airFiber X radio connection)
• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 70 N @ 200 km/h
• Dimensions: 378 x 378 x 26 mm
• Weight: 1.8 kg (with mounting kit)
• Mounting: Includes pole-mount kit with ±15° tilt adjustment
• Operating Temperature: -40°C to 70°C

The Ubiquiti airFiber X Antenna AF-5G23-S45 is a top-tier solution for extending wireless backhaul links with high efficiency and reliability. Its combination of high gain, advanced polarisation, and RF isolation ensures excellent performance in challenging environments, making it an ideal choice for professional-grade PtP deployments.
