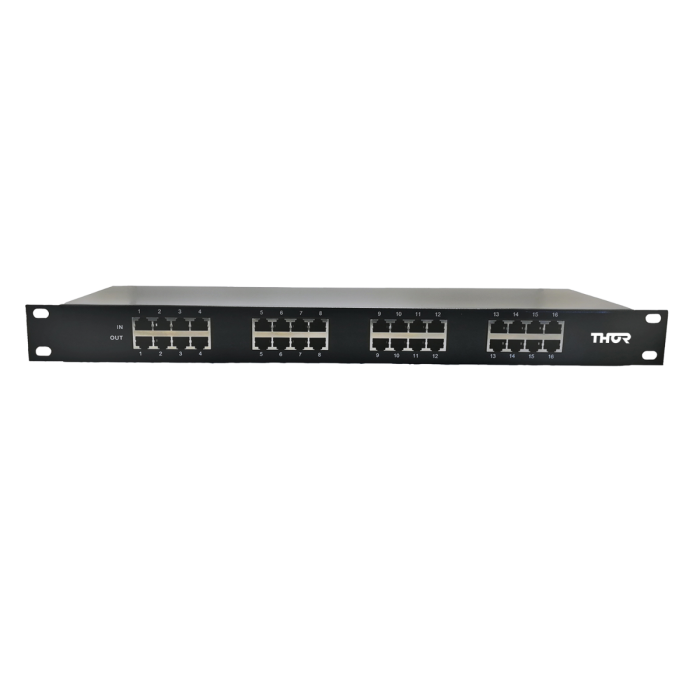

Thor RJ45/16 Smart Series 16 Way Network Surge Protection

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatabe sound and video quality. Improves performance in all types of computers too.

THOR TECHNICAL SMARTS

• Thor Surge Protection Network Switch

• Product Dimensions: 470mm(L) x 33mm(H) x 75mm(W)

• Supply voltage 240/V AC 50/Hz

• Maximum current rating 10amps/2400 W (VA)

• Clamping voltage 275 V AC

• Reaction time less than 1 nanosecond

• Maximum transient spike impulse current 156,000 amps (equivalent to 39,000 amps using UL1449 standard)

• Maximum energy dissipation 4588 Joules (equivalent to 1550 Joules using UL1449 standard)

• Protection modes (all 7 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)

• EMI/RFI noise reduction filter type

• Total number of protected AC outlets: 7

• RJ 45 data protection: 1 in and 1 out

• Earth potential rise protection

• Earth leakage range less than 1 milli amp

• Operating temperatures: -10C/+60C

• Cable length: 1.2m

• Model No: D1/45B



INSIDE THE BRAIN

SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
