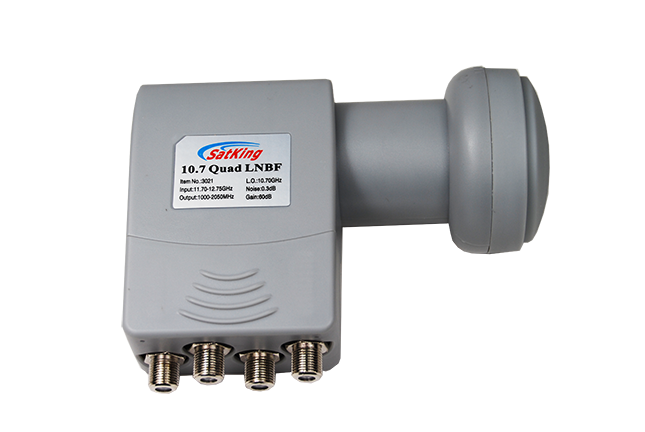

SatKing 10700 Quad Output Wide Band LNB | VAST & Foxtel

The SatKing Quad Output 10700 Wide Band LNB is designed for VAST and compatible Foxtel satellite TV systems, providing four independent outputs from a single satellite dish.

With quad outputs, dual polarity, a 10.7GHz local oscillator and 950–2050MHz IF, this LNB is ideal for installations where multiple satellite receivers or tuners need to share the same dish.

It is particularly useful for sharing VAST and Foxtel satellite services from a single dish, as well as installations requiring multiple independent satellite feeds.

Four Outputs From One Satellite Dish

The major advantage of this LNB is its quad-output configuration.

Instead of using a single-output LNB and then requiring additional equipment to distribute the satellite signal, the Quad Output 10700 LNB provides four outputs directly from the LNB.

This makes it suitable for installations such as:

One satellite dish → Four satellite receivers

or:

One satellite dish → Multiple VAST/Foxtel tuners

Each output can provide a satellite feed to compatible equipment.

This is particularly useful for homes, commercial premises, accommodation facilities and other installations where several satellite receivers need access to the same dish.

VAST & Foxtel From One Satellite Dish

One of the particularly useful applications for this LNB is sharing VAST and compatible Foxtel satellite services from a single dish.

Rather than installing separate dishes for each satellite television service, a suitable 10700 quad-output LNB can provide multiple feeds from the same dish.

SatKing specifically describes this model as commonly being used to share VAST and Foxtel on the one satellite dish.

Important: The receiver, subscription/service and satellite configuration must all be compatible. The LNB itself does not provide or activate a television service.

10700 Ku-Band LNB

The SatKing Quad Output 10700 is a Ku-band offset LNB with dual polarity.

Key specifications include:

• Ku-band
• Offset
• 10.7GHz local oscillator
• Dual polarity
• Four outputs
• RF: 11.75–12.75GHz
• IF: 950–2050MHz
• 0.6dB noise figure
• 60dBm typical gain
• 130 × 115 × 60mm dimensions

What is a quad-output LNB?

A quad-output LNB has four independent outputs, allowing multiple compatible satellite receivers or tuners to be connected to the same satellite dish.

Is this LNB suitable for VAST?

Yes. SatKing specifically lists its Quad Output 10700 Wide Band LNB for VAST satellite TV applications.

Can I use this LNB for Foxtel?

SatKing states that its 10700 LNBs are used for compatible Foxtel satellite TV installations, as well as VAST.

Can I run four VAST receivers from this LNB?

The four outputs provide four satellite feeds, making the LNB suitable for installations requiring multiple compatible receivers or tuners. The receivers and overall satellite configuration must support the intended service.

Can I use a splitter instead of a quad-output LNB?

A conventional passive splitter isn't necessarily a suitable replacement for multiple independent satellite feeds because satellite receivers may need to control the LNB polarity. A multi-output LNB is generally the appropriate solution when independent receiver feeds are required.

Will I need to realign my satellite dish?

If the dish hasn't moved, replacing the LNB doesn't necessarily mean the dish needs realignment. However, the LNB's position and skew are important, so signal quality should be checked after installation.
