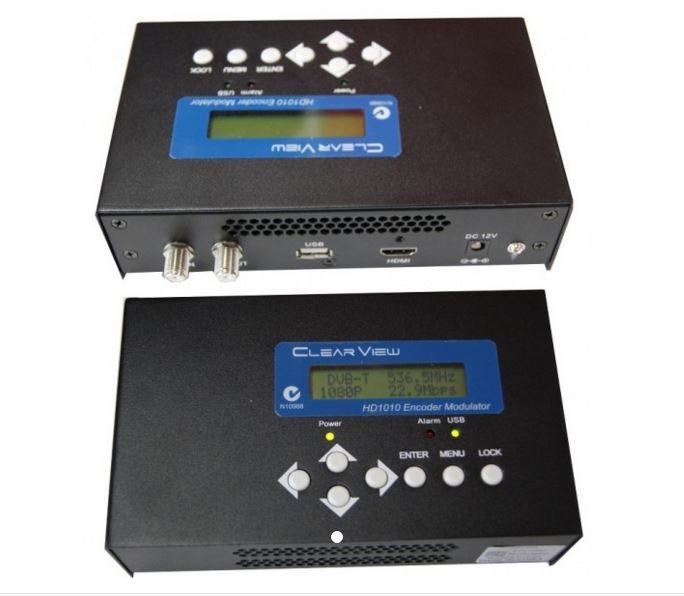

Clearview HD1010 HDMI Mpeg4 HD RF Modulator Single Channel

Please note that the HD1010 will play only on later TVs
that do not support MPEG4 content. If your TV does not support the new 9 HD or Racing channel then your TV does not support Mpeg4.

It has a high level output and when used
in a domestic situation it may overload
your TV and blank out all the channels.
To overcome this use a 18 to 24dB
attenuator between the modulator and TV.

Interface HDMI x 1
Resolution
480i, 576i, 720p, 1080i, up to
1080p@30FPS
Aspect Ratio 16:9, 5:4
Bit rate 1.00~18.00 Mbps
Audio
Encoding MPEGI layer 2, AAC LC
Sample rate 48KHz
Bit rate 64, 96,128, 192, 256, 320kbps
DVB-T Modulator Section
Standard DVB-T COFDM
Bandwidth 6M, 7M, 8M
Constellation QPSK, 16QAM, 64QAM,
Code rate 1/2, 2/3, 3/4, 5/6, 7/8.
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode: 2K, (8K Optional)
MER =>30dB
RF frequency 174-233, 470 - 858MHz in 1KHz steps
RF output level 89 to 100 dBuV in 1db steps
System
Management LCD + control buttons
Language English
LCN Insertion yes
Upgrade only via USB
General
Power supply DC 12Vwith 240V Power Pack
Dimensions 153X110X50mm
Weight 1kg
Operation temperature 0 - 45 Deg C
