Access Antennas

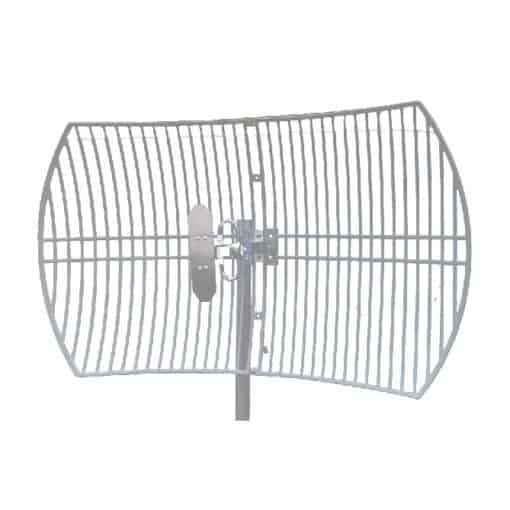

Blackhawk Grid Antenna 698-798 15DBI
Blackhawk Grid Antenna 698-798 15DBI
Regular price
$249.00
Regular price
Sale price
$249.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
When it comes to long range Telstra or Optus 4G internet, you’ll need a high powered 700MHz antenna. Grid antennas provide high performance while remaining light weight and incredibly easy to install. The Blackhawk 700MHz grid antenna provides 15 dBi gain, and comes with a large reflector that cuts out noise from nearby transmitters keeping your signal crystal clear.
- 15 dBi gain on 700MHz 4G LTE
- Suitable for Telstra 4GX and Optus 4G+
- Die cast aluminium construction with powder coat finish
- Pole mounting clamp included
- Short tail with pre-fitted N Female connector.
| Frequency Range | 698 – 798 MHz |
| Input Impedance | 50 Ω |
| Peak Gain | 15 dBi |
| VSWR | ≤1.5:1 |
| Polarisation | Vertical, linear |
| Horizontal Beam-width | 17° |
| Vertical Beam-width | 13° |
| Front-to-Back Ratio | >26 dB |
| Maximum Input Power | 100 W |
| Input Connector | N Female |
| Cable | 30 cm cable tail |
| Lightning Protection | DC Ground |
| Radiator Material | Die cast aluminium, powder coat finish |
| Mounting | Galvanised UNV clamp, pole mount 30-50 mm |
| Dimensions | 600 x 900 mm |
| Weight | 3.5 kg |
| Rated Wind Velocity | 240 km/h |
| Operating Temperature | -40 to +85°C |
