Access Antennas

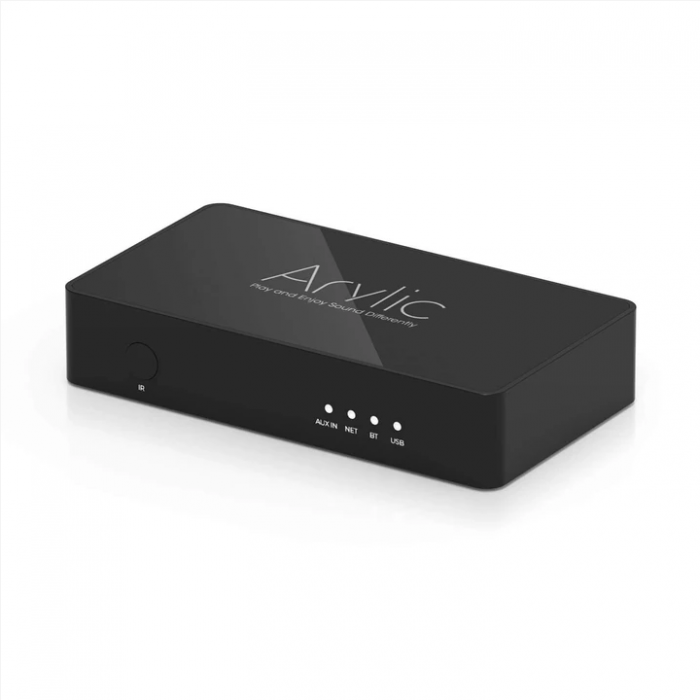

Arylic Mini Preamp With Wifi & Bluetooth 5.0 S10

Arylic Mini Preamp With Wifi & Bluetooth 5.0 S10

Regular price $159.00
Regular price Sale price $159.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

With the S10 mini integrated preamp you can stream your audio wirelessly to your speakers via Wifi, Bluetooth 5.0, Airplay, DLNA & UPnP. No matter where you are in your house, you can always take out your phone to play a song for you or your family. Easily and wirelessly play a bedtime story for your children or a Nickelback song to annoy your neighbours.

  • Smaller than your hand with a simple design, these features make S10 an easy fit for your home
  • Supports 16bit/44.1khz audio streaming and up to 24bit,192khz decoding which means you can stream with High Resolution audio wirelessly
  • Set an S10 preamp unit to each of your home stereo devices as a streamer in your house, then you can group and control all the units to sync or play the sounds separately at the same time
  • S10 mini preamp is equipped with an Up2stream Pro V3 audio receiver board inside so it can work as a USB DAC. You can directly connect it to a PC and stream PC audio digitally, also.

Stream your favourite online music such as Spotify, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheartRadio, Napster etc. The S10 min preamp is compatible to common stereo devices like amplifiers, vinyl players, active speaker and TV's.


USER INTERFACE & CONTROLS


LED indicators
White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected

Blue-Bluetooth mode:
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected

Green-Line in mode
Red-USB mode
Yellow-connect to PC
Power Button
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode); Disconnect current connected Bluetooth device (Bluetooth mode)
Short press three times: Restore the factory settings

Device off:
Short press: Switch on
PC
iTunes/Musicbee/Foobar 2000
Remote
Remote Control Available
4stream App
Free iOS and Android App

AUDIO


Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Audio Decode
Up to 24bit/192kHz
Audio Output
44.1khz/16bits, CD quality
Frequency Response
20Hz-20kHz
THD+N
0.03%
SNR
110dB
Audio Decode
Up to 24bit/192kHz
Online Music Service
Check here
Local Storage
Mobile device memory, NAS, USB pen drive/Stick

GENERAL


Weight
0.2kg
Dimensions
116.2*64*22.6mm
Working temperature
0~40℃
Package Included
Main unit x1
User's manual x1
2-1RCA cables x1
Aux 3.5mm cable x1
Remote cotrol x1
5V1A Micro USB Power adapter x1

CONNECTIVITY


Wifi
IEEE 802.11 b/g/n 2.4G
Bluetooth
5.0 SBC/AAC, 10M
Wired Connection
Ethernet RJ45
Streaming Protocols
AirPlay, DLNA, UPnP, Spotify connect, Qplay

INTERFACES


Power input
5V1A
Audio input
3.5mm mini jack(1Vrms)
USB Host
For USB pen drive/stick, 1000 songs limited
Antennas
WiFi/Bluetooth Signal
